SIMSCAN E/S Gen 2 3D scanner

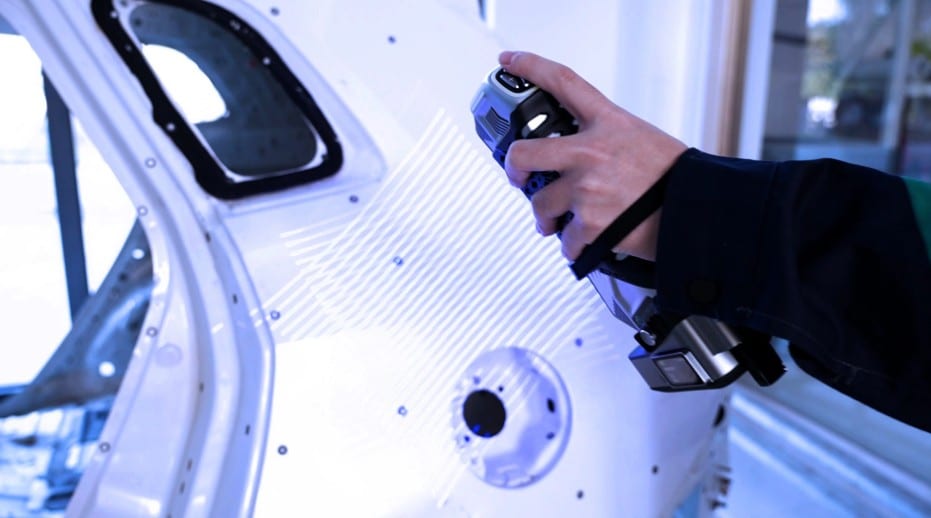

The SIMSCAN-S Gen2 is a compact, palm-sized 3D scanner with super-high precision. It offers wireless freedom, ultra-fast scanning, and flexible operating modes.
The system ensures highly detailed measurements and strengthens verification at the feature level. It enables more dependable control of GD&T-critical characteristics, including functional surfaces, precision-machined features, and assembly-defining geometries.
This makes it ideal for high-end manufacturing environments such as aerospace and advanced machining, where tolerance integrity is essential to performance, fit, and quality decisions. Compliant with ISO 10360, the SIMSCAN-S Gen2 ensures results you can trust worldwide.
Sariki is SCANOLOGY'S MASTER RESELLER for Spain and Portugal
Ideal 3D scanning solution: SIMSCAN E/S Gen 2
Compact and Easy to Use

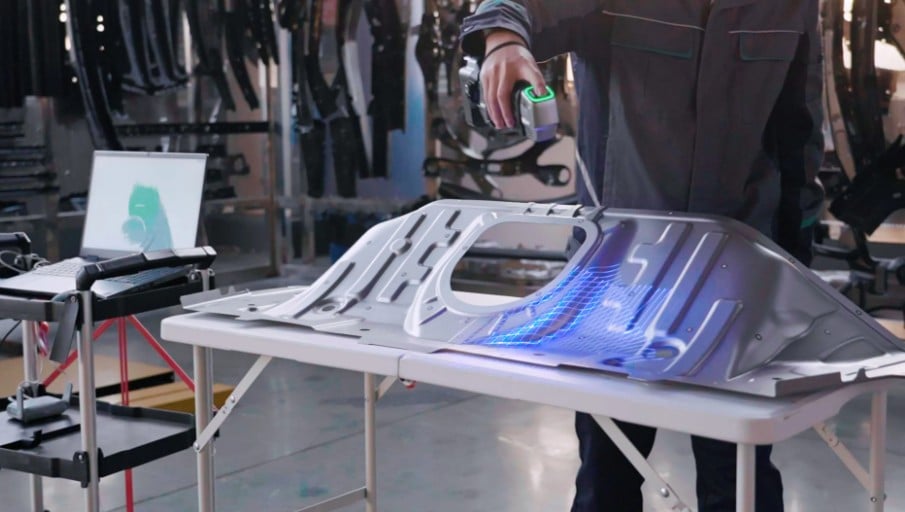

Capture More. Scan Faster
Go Lighter. Go Wireless

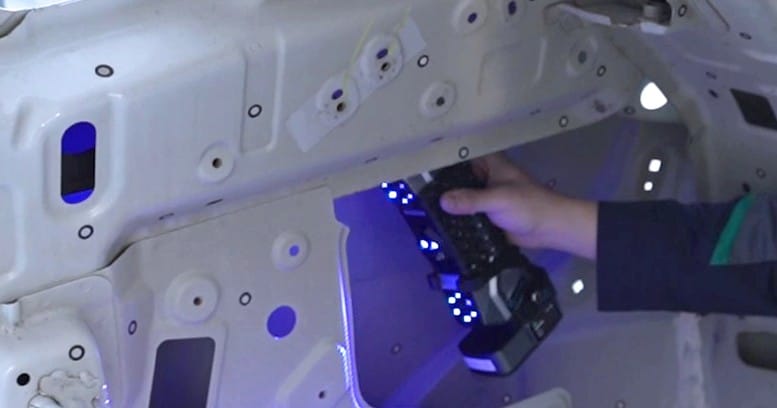

Scan Where Others Can’t
Get reliable results even in the most hard-to-reach areas. Thanks to its short-baseline camera design, SIMSCAN-S Gen2 easily captures gaps, deep holes, slots, and channels with a steep viewing angle. No matter how complex the part, you get complete and accurate 3D data you can trust for inspection, design, and reverse engineering.
Diverse Operating Modes
Users can switch between different scanning modes, handling parts of various materials, shapes, and sizes to meet diverse needs for data acquisition and inspection.
Ultra-fast scanning. 108 blue laser lines (Quad Cross Technology) for efficient scanning to evaluate the geometry and dimensions of parts quickly.
Hyperfine scanning. 17 blue parallel laser lines for swift detail capturing of intricate features and complex structures.
Deep hole scanning. 1 extra blue laser line for measuring deep holes and hard-to-reach areas.
Benefits
Portable, one-handed
wireless scanning
High accuracy
up to 0.015 mm
Rate
up to 8.1 million measurement/s
Related Products and Services
With this system you can use different softwares depending on your needs and uses.
We will always advise you about the most appropriate complement for your company if you wish. Do not hesitate to ask us.
Applications
You can use the SIMSCAN-E/S Gen 2 scanner in applications for Design and Manufacturing (Reverse Engineering, Rapid Prototyping, 3D Documentation, 3D Printing), Quality Department (Dimensional Control, Deformation Analysis, Repeatability Analysis), Health (Orthopedics, Prosthetics, Surgery Plastic Arts), Science and Art (Research, Train, Virtual Museums, Heritage Preservation, Architecture) and Video Games (Avatars, 3D Scenes, 3D Printing).
Quality control
Compare your measurements with the nominal CAD of the part and create a 3D color mapping with the errors
Analysis
Identify and find solutions to any structural and functional defect by modeling the system or product in a virtual environment
Reverse engineering
Perform reverse engineering from the obtained point cloud (free form geometry and surfaces) and transform it into a native CAD model
3D printing
Manufacture detailed parts in various materials with perfect data integration with any 3D printer
Technical specifications
| 3D scanner | SIMSCAN-E Gen 2 | SIMSCAN-S Gen 2 |
|---|---|---|
| Ultra-fast scanning | 108 blue laser lines (Quad Cross Technology) | 108 blue laser lines (Quad Cross Technology) |
| Hyperfine scanning | 17 blue parallel laser lines | 17 blue parallel laser lines |
| Deep hole scanning | 1 extra blue laser line | 1 extra blue laser line |
| Volume accuracy | 0.015 mm + 0.035 mm/m | 0.015 mm + 0.03 mm/m |
| Resolution | Up to 0.020 mm | Up to 0.020 mm |
| Accuracy | Up to 0.020 mm | 0.015mm |
| Sphericity | - | 0.025 mm |
| Flatness | - | 0.035 mm |
| Scanning rate | Up to 6,300,000 measurements/s | Up to 8,100,000 measurements/s |
| Scanning area | 700 mm × 600 mm | 700 mm × 600 mm |
