NimbleTrack-CR 3D scanner
NimbleTrack-CR, an intelligent and wireless 3D scanning system, is especially designed for ultimate detail capture
Built on the advanced features of the NimbleTrack series—wireless freedom, lightweight and portable design, and high accuracy—this next-generation solution pushes the boundaries of 3D digitization.
SCANOLOGY's metrology laboratory comply with ISO/IEC 17025 standards.
Sariki is SCANOLOGY'S MASTER RESELLER for Spain and Portugal
Ideal 3D scanning solution: NimbleTrack-CR

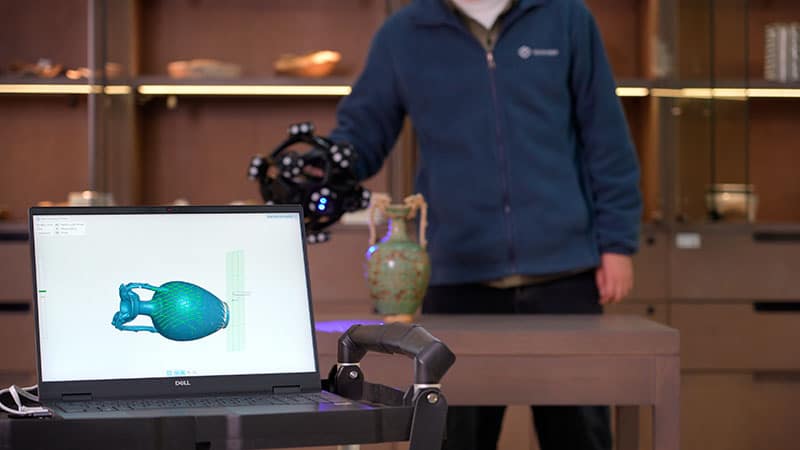

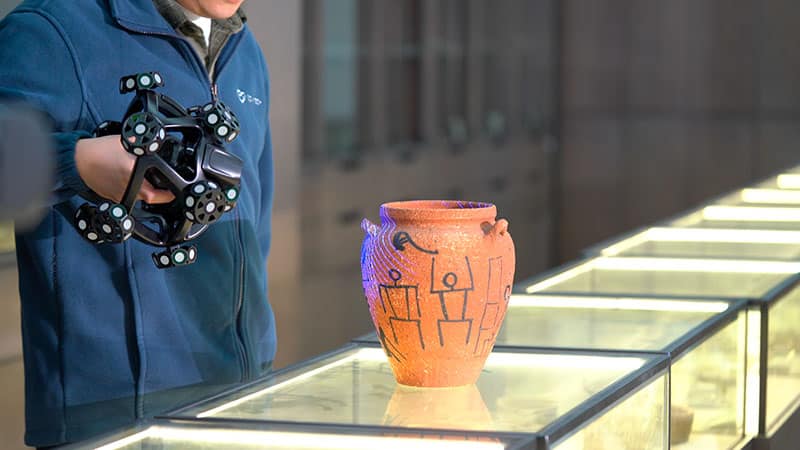

Equipped with high-performance industrial cameras and intelligent algorithms, NimbleTrack-CR captures even the finest features and most intricate structures with exceptional detail and accuracy. Whether for industrial quality control or cultural heritage preservation, it ensures accurate, detailed scans, unlocking new possibilities in manufacturing, research, and restoration.
Unmatched Detail Capture
NimbleTrack-CR is equipped with a state-of-the-art optical imaging system and intelligent algorithms, enhanced by advanced cross technology and sub-pixel image processing for exceptional precision. This system captures fine details with high precision, achieving "what you see is what you get."

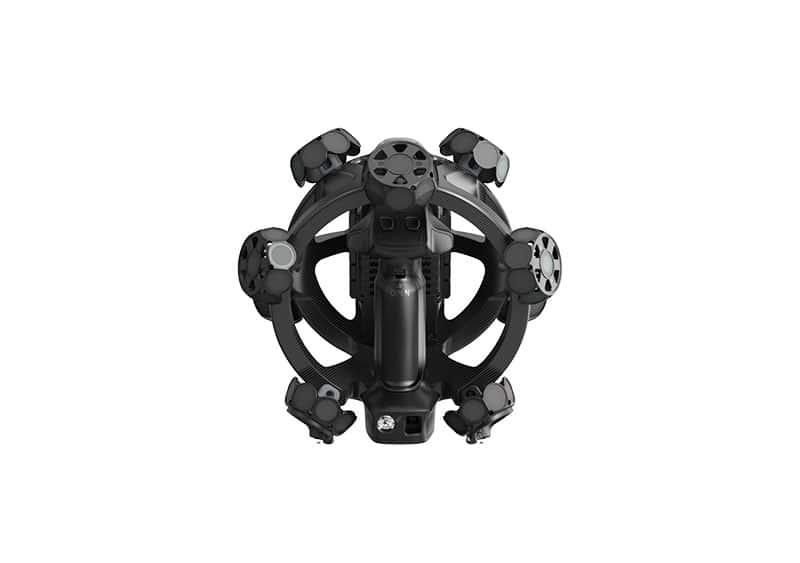

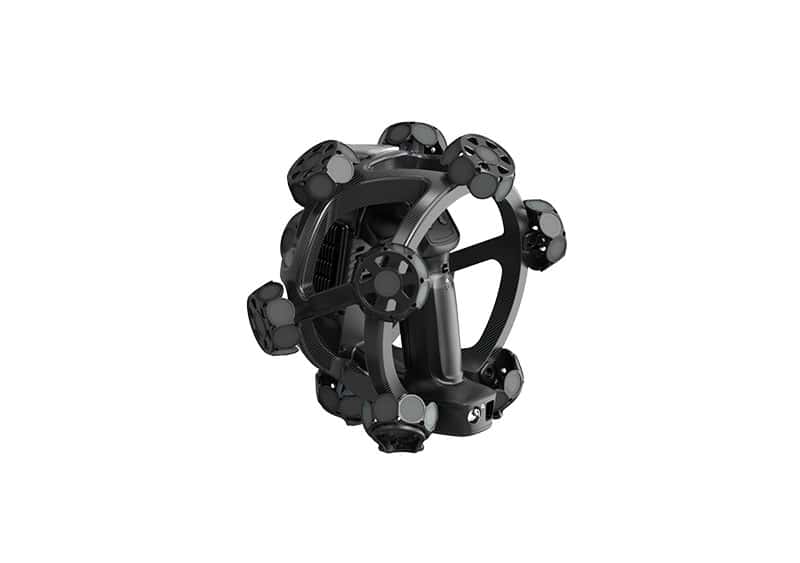

Lightweight and Portable Design
230-mm diameter and 1.3-kg weight. Designed with portability in mind, the scanner is exceptionally compact and lightweight, fitting neatly into a single case for effortless transport and storage.
Multi-Material Compatibility
Scans textiles, ceramics, bronze, sheet metal, and more without needing spray coatings, protecting the surface from damage.
Multiple Scanning Modes
Supports ultra-fast scanning, hyper-fine scanning and deep hole scanning, adaptable to diverse scanning needs.
Adaptable to Different Environments
Handles various part sizes and types across indoor and outdoor settings, even under direct sunlight.

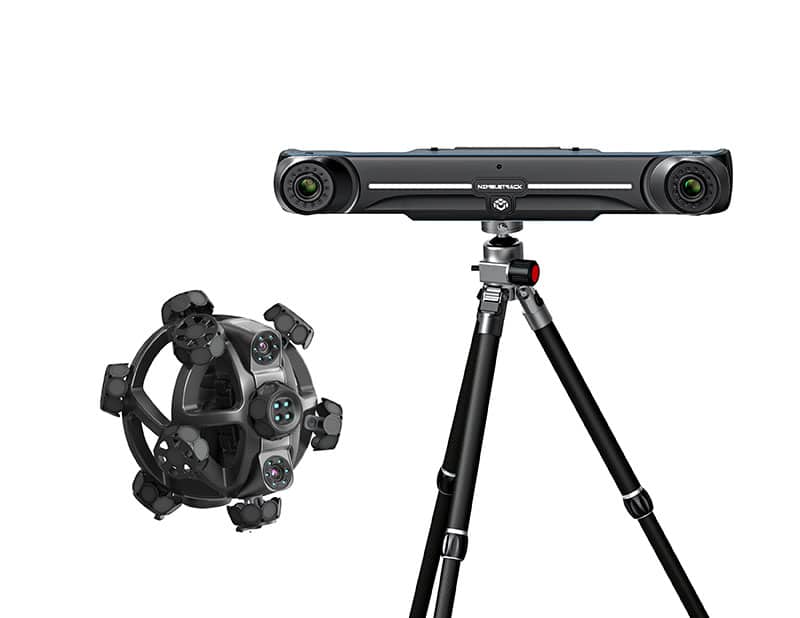

Wireless Measurement
The NimbleTrack-CR incorporates edge computing for fast and stable data processing. The built-in batteries on both 3D scanner and tracker ensure continuous scanning without external power sources, offering greater flexibility and efficiency in the scanning process.
-On-board computing module
-Built-in batteries
-WNIC design
Benefits
Multi-tracker
Measurement
Automated
Measurement
Intelligent
Edge Detection
Wireless
Freedom
Related Products and Services
With this system you can use different softwares depending on your needs and uses.
We will always advise you about the most appropriate complement for your company if you wish. Do not hesitate to ask us.
Applications
You can use the NimbleTrack-CR scanner for quality control, product development, reverse engineering, and more, in industries such as aerospace, automotive, railway transportation, and mold manufacturing.
Quality control
Compare your measurements with the nominal CAD of the part and create a 3D color mapping with the errors
Analysis
Identify and find solutions to any structural and functional defect by modeling the system or product in a virtual environment
Reverse engineering
Perform reverse engineering from the obtained point cloud (free form geometry and surfaces) and transform it into a native CAD model
3D printing
Manufacture detailed parts in various materials with perfect data integration with any 3D printer
Technical specifications
| 3D scanner | NimbleTrack-CR scanner |
|---|---|
| Ultra-fast scanning | 17 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines |
| Deep hole scanning | 1 extra blue laser line |
| Volume accuracy | 0.064 mm |
| Resolution | Up to 0,020 mm |
| Scanning rate | 4,900,000 measurements/s |
| Scanning area | 500 mm × 600 mm |
